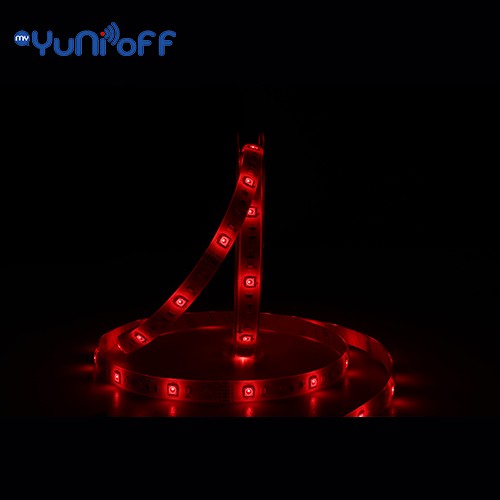

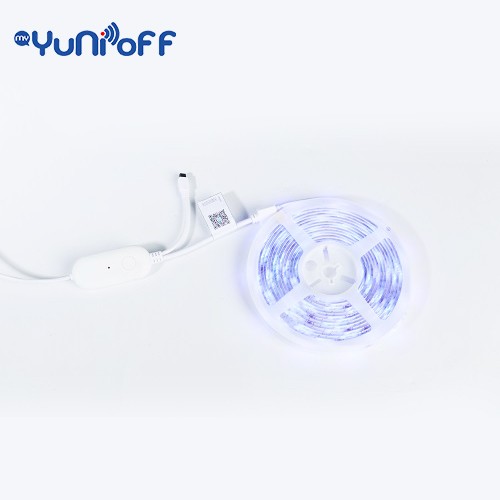

Smart Mini LED Strip Light Kits RGB+CCT IR&WiFi &BLE

LED strip: DC12V, FPCB width 12mm
24pcs 5050 RGB
24pcs 2835 Warm White
24pcs 2835 Cool White
IP65 PU coated strip, 5M/roll
Power adapter: Power adapter with EU plug as defaulted
Input AC 220V-240V
output 12VDC,1.5A,18W
WiFi & BLE Local microphone
embedded voice sensor
music sync controller + IR remote control
1pcs 24Keys IR remote control
1pcs cable clip
3pcs double adhesive tapes
Product Size(mm):150*150*11.5
Package Size(mm):170*170*70
Product Weight(g):350.70
Package Weight(g):446.70


Product Description

The LED strip light syncs to ambient sounds, Different music modes are designed for different types of music.You can sync your Wi-Fi LED lights to the music and any other voice in the room(or hands claps) and dance the lights along with beats of music, for a ultimate entertainment experience.


Product Features:

Especially great for holidays and events like Christmas, Halloween, Valentines, Parties and more. Great gift for your family and friends


Smart app control, ir remote control:

The 50 feet led strip lights support lighting and 24 keys ir remote for control, which allow you change the led lights color and modes are conveniently for bedroom, ceiling, kitchen, living room, bar and party decoration.


Easy installation:

The led strip lights 50 feet ultra long is enough to reach around your entire bedroom and light up the whole home for party, wedding indoor.


Music sync:

Led lights strip with built in sensitive microphone, this ambience Lights color changing sync to music, make your party up to the high peak, light up your life and makes life more colorful.


Smart timing settings:

With timer function, the rgb led strip lights allow you to pre set time to turn on off led lights and change color at certain times, just enjoy it in a smart way.


Led lights features:

5050 rgb led chips allows the led lights to be very colorful and durable; The remote can dim the led light strip and offer different colors and modes by remote.


User Guide


1.Use the power adapter with DC12/24V of output voltage only.

2.Install the controller correctly, use 3M tape to fix it.

3.Please unfold the LED strip to avoid the overheat issues. Please connect the cables of LED strip with the right position on the controller. Test the APP to check if it can control the LED strip correctly. If everything goes well, go to next step.

4.Check and ensure the power supply, controller and LED strip are connected correctly.


Download APP

1: Search the APP- “SMART LIFE”from Apple store or Google Play.

2: Scan the QR code from the label or user manual.

The APP compatible with Android 4.0 and IOS8.1 or higher version.


Log in / Register an account

Open the APP - “Smart Life”, sign up for a new account or log in with an existing account.


APP connection

1.Preparation jobs: Power on the LED strip and enter the home of APP, please make sure your mobile and the smart kits are connected to the same WIFI.

2.Connect the controller

Solution 1) :

 After powering on the strip, turn on and off 3 times(or long press the switch button for over 5 seconds), the strip will go into a status of quick flashing. Find the “+”(in the corresponding room of the APP) to add devices. If your mobile have already turned on bluetooth before connecting the LED strip,then no need to turn on bluetooth again, the APP will connect to the LED strip automatically. If your mobile didn’t turn on bluetooh before connecting the LED strip, the APP will pop up an interface with tips to ask you to turn on bluetooth. Then please choose “Allow”, then the bluetooth function of your mobile will be turned on. After that, the APP will pop up tips with info of the LED strips, then choose “Go to add”. Will go into an interface of bluetooth device, choose the “+” and go into next interface(Enter Wi-Fi password). Input the password of the WIFI and choose “Confirm”, then it will go into status of “Connecting......”,you will need to await for your mobile to pairing with the controller at this step. Choose “Done” when it shows “Added successfully”, then go into operation modes. (If solution 1 is not suitable with your devices, please refer to solution 2)


Solution 2) :

After powering on the strip, turn on and off 3 times(or long press the switch button for over 5 seconds), the strip will go into a status of quick flashing. Find the “+”(in the corresponding room of the APP) into interface of “Add manually”. Then choose “lighting” to choose the correct smart devices and go into interface of “Select 2.4 GHz Wi-Fi Network and enter password”.Enter the Wi-Fi password, then choose “Next” and waiting until pairing success(make sure your mobile and the smart devices are in the same Wi-Fi networks). Then go into the interface of “Scanning devices”, after scanning success and choose “Next”, it will pop up interface of “add successfully” and choose “Done” to go into the operation modes.


3. When connecting with the power supply, the led strip not flash. Please press the function button for over 5 seconds, then the light flash, enter into the APP and choose to add all the device in the corresponding room in the APP. Enter into the interface of adding lighting device and match the LED strip.


Interface introduction

1.You can adjust the brightness and CCT under white light mode.

2.Under color light mode, you could change to any RGB mixed color and adjust the brightness and saturability.

3.Scene: 1Recommended scene: various modes available for options, you can choose your preferable modes freely.

2Customized scenes: choose “+” into the interface of customized scene(Create scene), operation according to the tips.

For example: set your preferable colors, jump and breathing etc. Choose the “Save” to finish the setting.

4.Music modes

1The interface of music mode include local mode and APP mode for options. It means the lighting modes could synchronize change with the rhythm of music or voice that the smart devices received, light and sound synchronization without delay, and scenes with different color changing rhythms.

Local modes: could receive the voice via the smart controller, it could receive the surrounding voices to control the light color synchronize changing.

APP modes: receive the voices via your mobile’s microphone to control the light color synchronize changing.

2You could adjust the sensitivity and rhythm scene under the local mode.Sensitivity adjustment: move the slide button to adjust your preferable sensitivity.

Rhythm scene: you can choose the recommended scene or customized your own scene.

Customized scene: find the “rhythm scene” and choose “+” to create new rhythm scene to customize your preferable modes. The light synchronize change with the selected rhythm scenes.


Third party control

In the Smart Life APP: Find more service in "Me" menu, and find “More service”, you’ll find the third-party access service (Alexa/ Google Assistant/Tecent Xiaowei/DuerOS/Dingdong etc) , select the service you need. Connect to the third-party service device according to the operation guide.

Please contact customer service for any update of product or APP.
