Smart Zigbee One-Button Switch Sensor

Fireproof Material:PC+ABS
Communication Mode:ZigBee
Operating Temperature:-10~55℃
Work Current: 9-12MA
Power Supply:DC 3V (CR2032 battery)
Low power indication:Support(2.6V±0.2V)
Installation:3M glue
Installation Way: Wall Mounted(with sticker)
Installation Height: 0.8m-1.2m (Suggested)
Product Size(mm):ø50X16mm
Package Size(mm):57*57*30
Product Weight(g):26.70
Package Weight(g):37.20


Product Description

When something unexpected happens, press the middle emergency button, the alarm information will be pushed to the mobile phone in time, and ask the outside world for help with one button to avoid tragedy. The emergency button can also be linked. When an emergency occurs, it can be notified in time without missing any safety hazards.


Product Features:

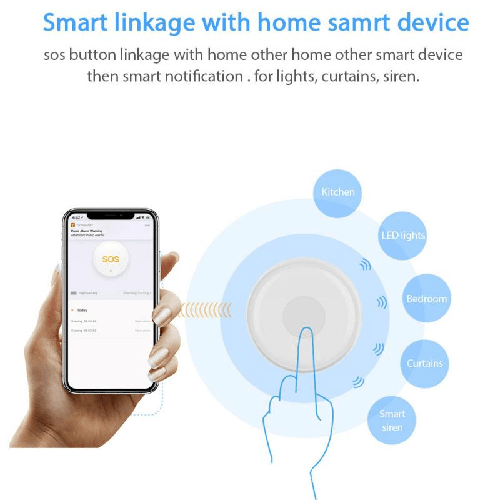

1. Low power consumption microprocessor, long standby .Linkage with home other smart devices such as lights, curtains, siren, then notifications pushed.

2. One-click help to prevent accident  Easy to operate when accident happen.Simply press the call button to alert the caregiver via the receiver or Hub. Widely used in home, hotel, hospital, retirement home and other needed places.

3.Simple to use and provides peace of mind.Nurse caregiver SOS emergency call button alert system for patient, disabled, elderly and children.

4. Perfect for use as an alert aid for elderly, pregnant woman, children or disabled who can't stand up from toilet, bathroom fainting, floor mat fall alarm or heart attack, emergency call for help.

5. Call button can be wall mounted beside bedside, sofa, closestool or placed near caregiver.

6.Low battery indication function.

7.Send status report to the gateway periodically.


Entering the Network Configuration Mode

1.Power on the product.

Insert a thin blade or coin into the slot on the battery cover and rotate it anticlockwise to open the battery cover.

Remove the battery insulation film to power on the product and close the battery cover.

2.Press the reset button for 5S and release, the green LED will flash for network setting.


Distribetion network hint:

Press the reset button for 5s10s, the green LED is on,once green LED turns off,release the reset button. The green LED flashes, means ready for network setting.It keeps on flashing for 20s during network setting.If pressing for more than 10s,network setting cancelled.

The green LED will be on for 5s to indicate network setting succeeds. If fails,the green LED is off.

Installation Instructions

Method 1:Directly place the product in the target


Method2: Remove the protective film from the

adhesive,and attach the product to the target position.

Warranty certificate for this product

Warranty policy:

1. If the product has quality problems within 7 days after payment date, you can apply for a refund based on the invoice price, or to replace with the same model or have it repaired.

2. If the product has quality problems within 15 days after payment date,you can apply to replace the product with the same model or have it repaired.

3. If the product has quality problems within 12 months after payment date,On the payment date, you can apply to  have it repaired.

What is warranty does not include:

1. The product owner has no warranty certificate or warranty the service has expired.

2. Damage caused by improper use, maintenance or storage.

3. Damage caused by disassembly and repair without Tuya's authorization.

4. Damage caused by force majeure

5. Normal discoloration and depreciation after the product has been used.
